Model No.:SRM-S990
IP65 Double Side Strobe Wash Moving Head Light
Electrical Data
Input Voltage: AC 100V–240V, 50/60Hz (Auto-ranging)
Max. Power Consumption: 1586W @ 230V / 1634W @ 110V
Input Current: 7.14A @ 230V / 15.0A @ 110V
Power Factor (PF): 0.98
Protection: F20AL250V Fuse
Optical & Light Source

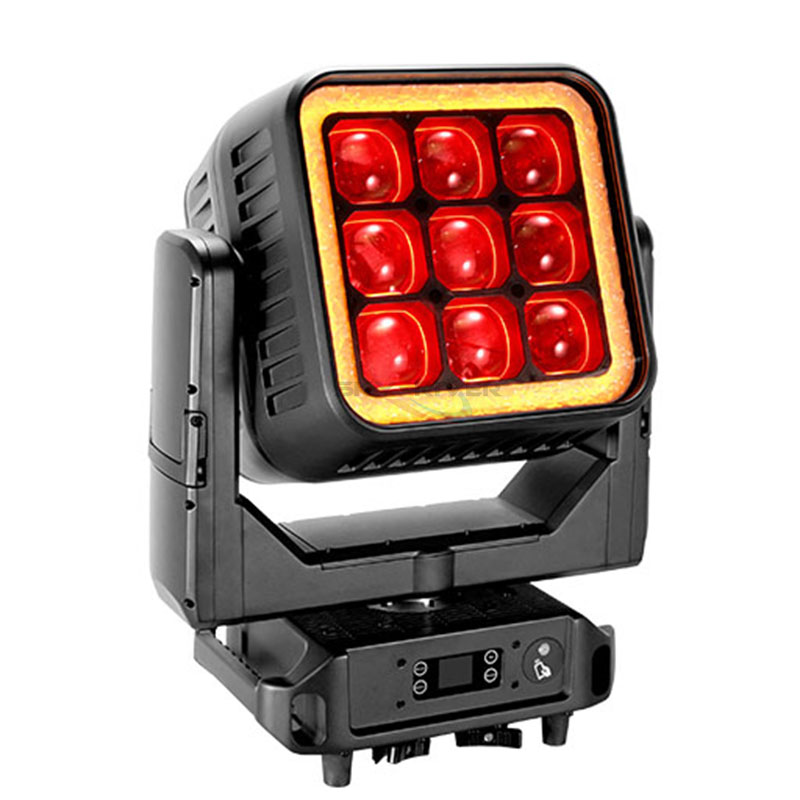

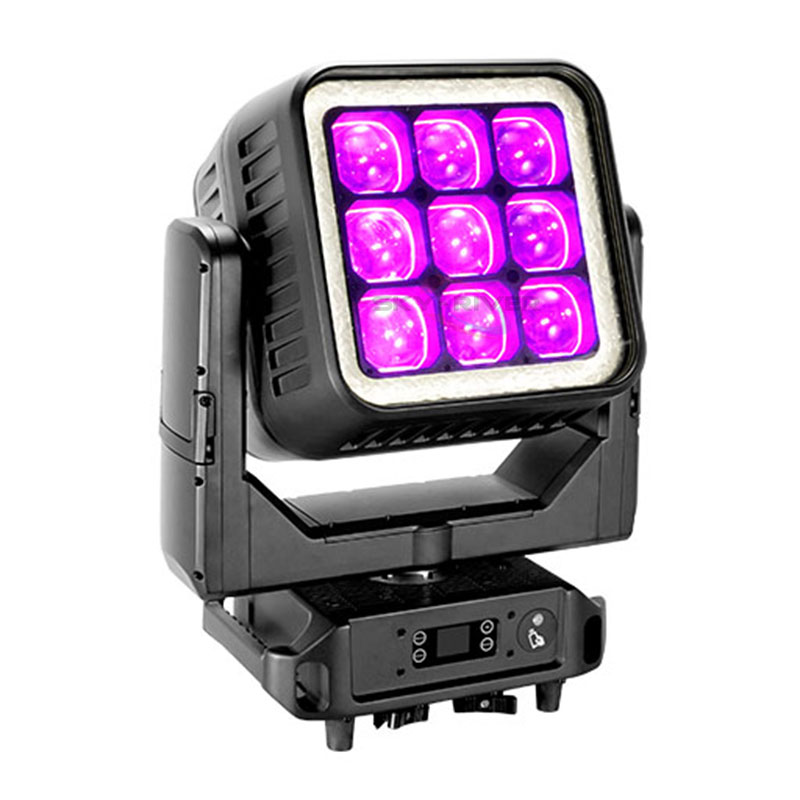

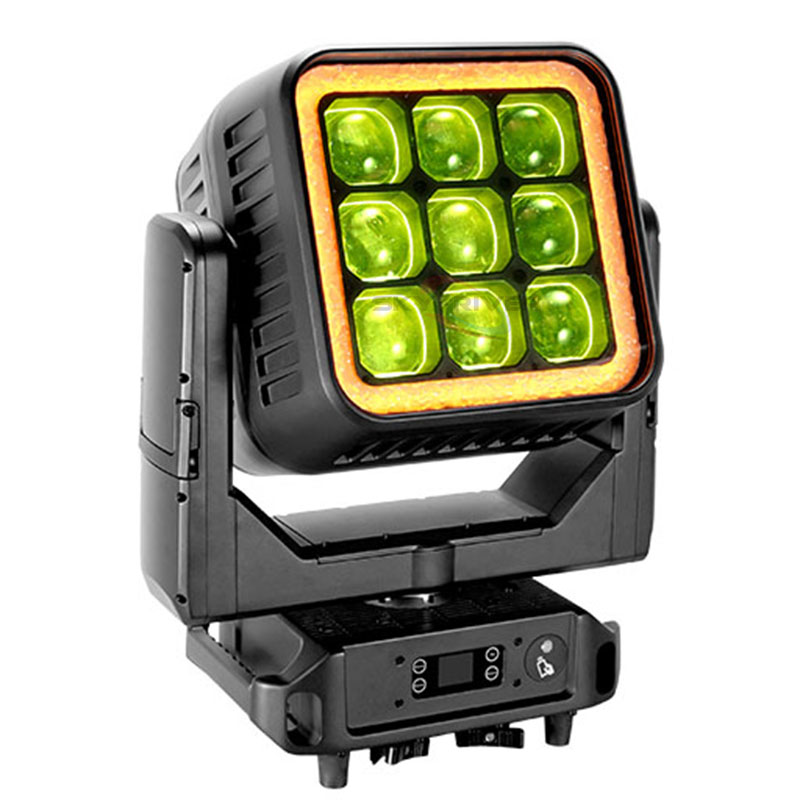

Side A Main LED: 9 x 90W RGBL (Wash Effect)
Side A Aura LED: 84 x CW&WW (3 LEDs per group, 28 independent segments)

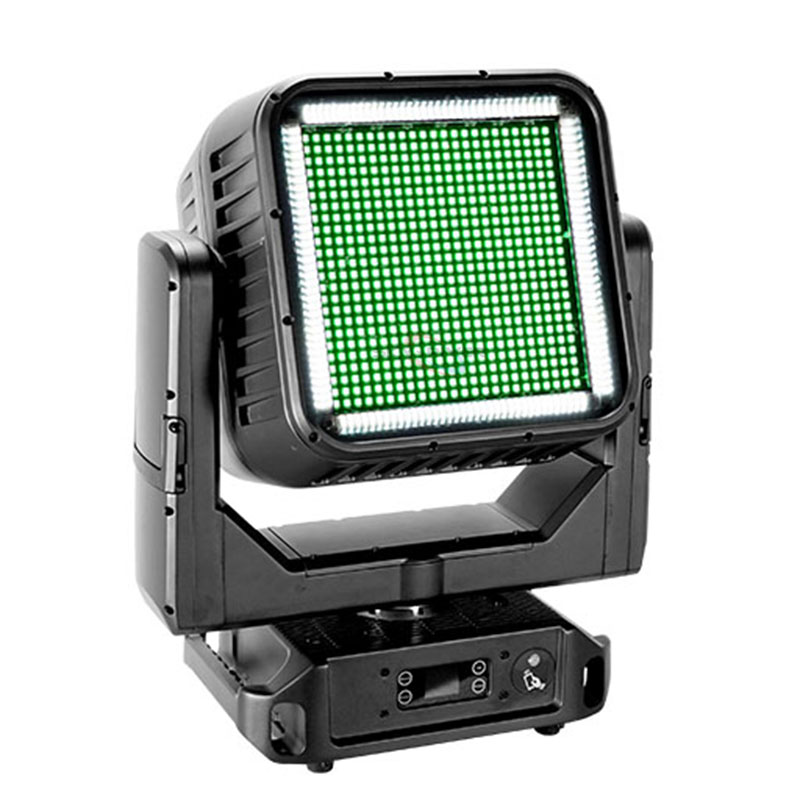

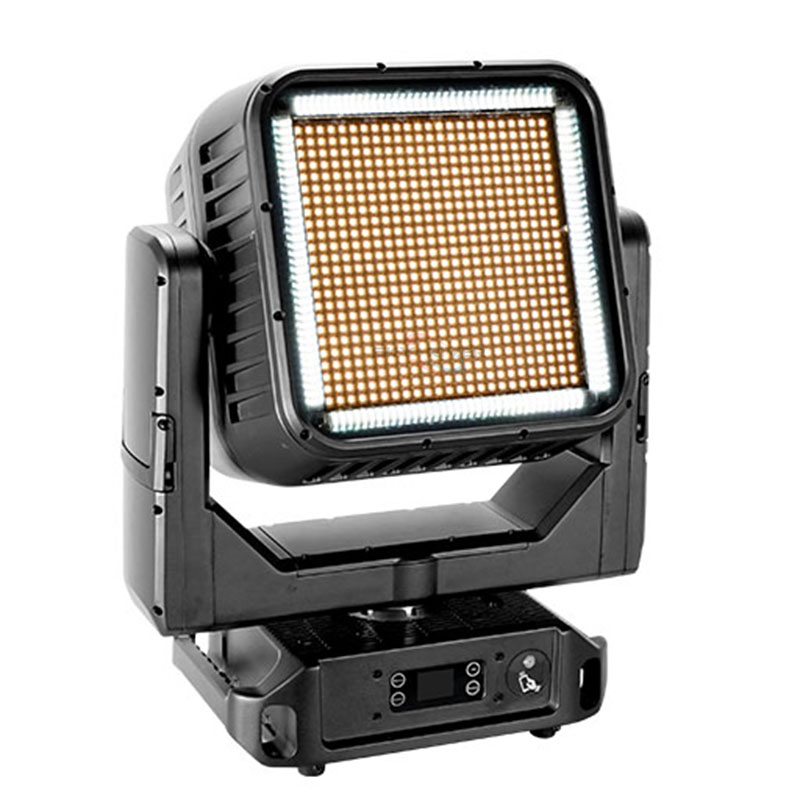

Side B Main LED: 576 x 2W RGBWW (Strobe Effect, 36 LEDs per group, 16 independent segments)
Side B Aura LED: 288 x CW (6 LEDs per group, 28 independent segments)
Beam Angle (Side A): 4° – 7° (Narrow) / 30° – 45° (Wide)
Beam Angle (Side B): 66° – 110° (RGBWW) / 58° – 87° (CW Strobe)
Flicker-Free: 1kHz – 25kHz adjustable PWM (Ideal for high-speed cameras)
Control & Programming
Control Protocols: DMX512, RDM, Art-Net, sACN, NFC
DMX Channels: 28CH / 46CH / 228CH (Multi-mode)
NFC Technology: Built-in NFC for offline configuration via mobile app
Physical & Construction
IP Rating: IP65
Dimensions: 499 x 280 x 606 mm
Net Weight: 32.75 kg
Gross Weight: 34.00 kg
Operating Temp: -20°C to 45°C
