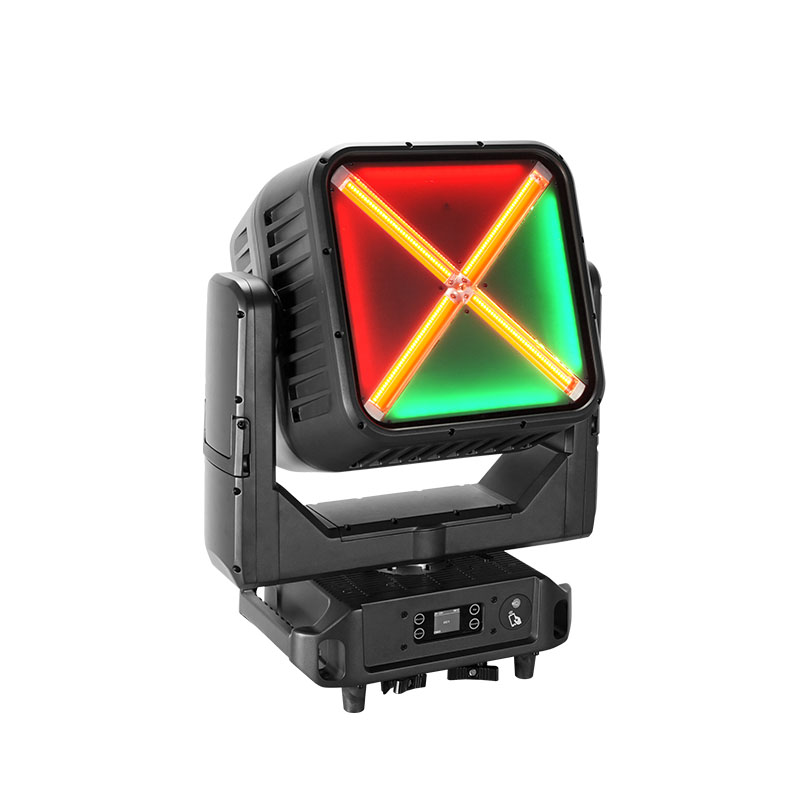

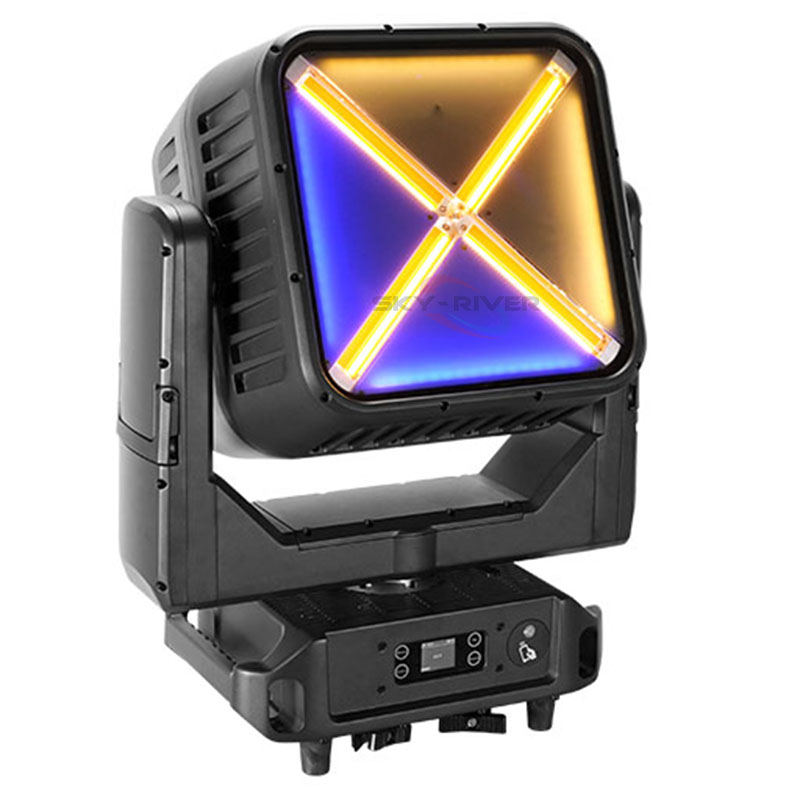

IP65 Double Side Retro Wash Moving Head Light
- Specification
- Video
- Connection
- Download
- Leave message
Model No.:SRM-X990
Electrical Data
Input Voltage: AC 100V–240V, 50/60Hz (Auto-ranging)
Max Power Consumption: 1308W @ 230V / 1400W @ 110V
Input Current: 5.83A @ 230V / 12.32A @ 110V
Power Factor (PF): 0.98
Protection: F20AL250V Fuse
Optical & Light Source
Side A Main LED: 9 x 90W RGBL
Side A Aura LED: 84 x CW&WW (3 LEDs per group, 28 independent segments)
Side B Main LED: 4 x 100W Amber&WW COB(Retro effect)
Side B Aura LED: 64 x RBGW (4 LEDs per group, 16 independent segments)
Beam Angle (Side A): 4° – 7° (Narrow) / 30° – 45° (Wide)
Beam Angle (Side B): 66° – 99°
PWM Frequency: 1kHz – 25kHz (Flicker-free for Film/TV)
Control & Programming
Control Protocols: DMX512, RDM, Art-Net, sACN, NFC
DMX Channels: 29CH / 46CH / 188CH (Multi-mode)
Advanced Features: NFC configuration for mobile setup, Pixel-mapping for Aura effects
Physical & Construction
IP Rating: IP65
Cooling: High-efficiency thermal management system
Operating Temperature: -20°C to 45°C
Dimensions: 499 x 292 x 606 mm
Net Weight: 35.85 kg
Gross Weight: 37.00 kg
